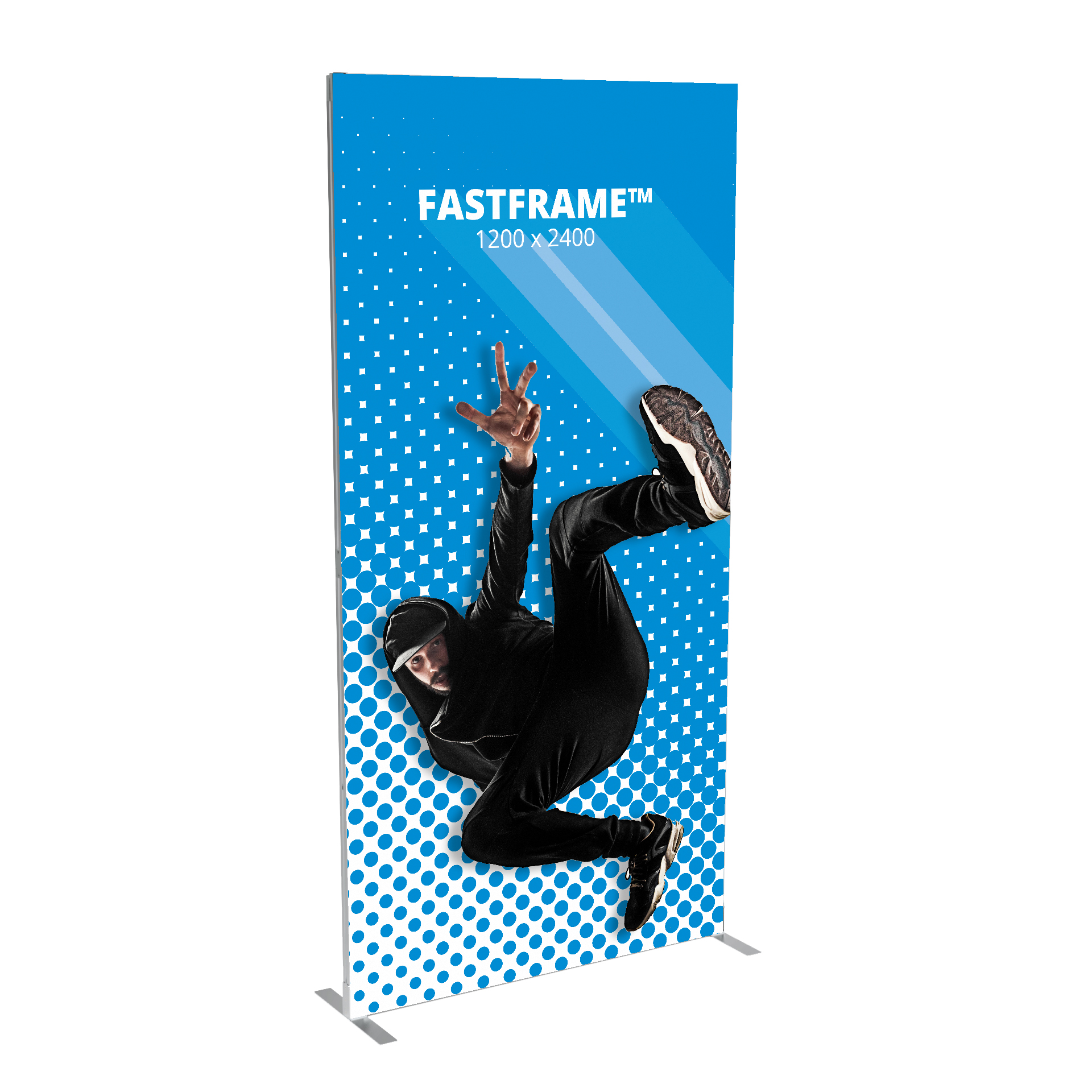

Fastframe™ Modular Display System UK

See Fastframe™ in Action

Fastframe™ SEG Fabric Graphics

A key advantage of the Fastframe™ system is that one seamless graphic can span multiple linked frames, helping create uninterrupted branded backwalls, media walls and modular exhibition environments with minimal visual interruption.

There are two Fastframe™ graphic media options: Polyester Stretch Graphics (PS) are the standard option for most Fastframe™ displays where a smooth, reusable tension-fit graphic is required, while Black Back Graphics (BB) are the premium option for displays where richer colour depth, stronger contrast and a more impactful exhibition-quality finish are required.

Graphic sizes are available for individual frames, linked displays, counters and larger seamless modular configurations.

Fastframe™ Feet Options

Fastframe™ feet options allow frames to be configured for standalone displays, linked backwalls, wall-adjacent positioning and discreet modular layouts. Different foot styles support different installation requirements depending on the frame configuration and available floor space.

Fastframe™ Full Feet

SKU: FF-FF

Configuration	Purpose
Single	Standard feet supplied with larger Fastframe™ frame sizes for stable standalone display setups.

Assembled Data: H x W x D	Net Weight
99 x 50 x 400mm	1.2kg

Package Dimensions: L x W x D	Packaged Weight
75 x 420 x 130mm	1kg

Fastframe™ Side Half Feet Pair

SKU: FF-SHF

Configuration	Purpose
Pair	Designed to allow Fastframe™ displays to sit closer against a wall to maximise floor space usage.

Assembled Data: H x W x D	Net Weight
98 x 50 x 220mm	1kg

Package Dimensions: L x W x D	Packaged Weight
80 x 245 x 130mm	1.2kg

Fastframe™ Middle Full Foot

SKU: FF-MFF

Configuration	Purpose
Single	Used to support and link two Fastframe™ units side-by-side within larger modular layouts.

Assembled Data: H x W x D	Net Weight
89 x 50 x 400mm	0.79kg

Package Dimensions: L x W x D	Packaged Weight
75 x 420 x 130mm	1kg

Fastframe™ Middle Half Foot

SKU: FF-HFM

Configuration	Purpose
Single	Designed to link two Fastframe™ frames side-by-side while allowing the display to sit neatly against a wall.

Assembled Data: H x W x D	Net Weight
89 x 51 x 220mm	0.45kg

Package Dimensions: L x W x D	Packaged Weight
75 x 250 x 130mm	0.5kg

Fastframe™ Small Middle Foot

SKU: FF-SMF

Configuration	Purpose
Single	Compact linking foot designed to discreetly sit beneath linked Fastframe™ displays.

Assembled Data: H x W x D	Net Weight
89 x 40 x 97mm	0.212kg

Package Dimensions: L x W x D	Packaged Weight
70 x 130 x 120mm	0.3kg

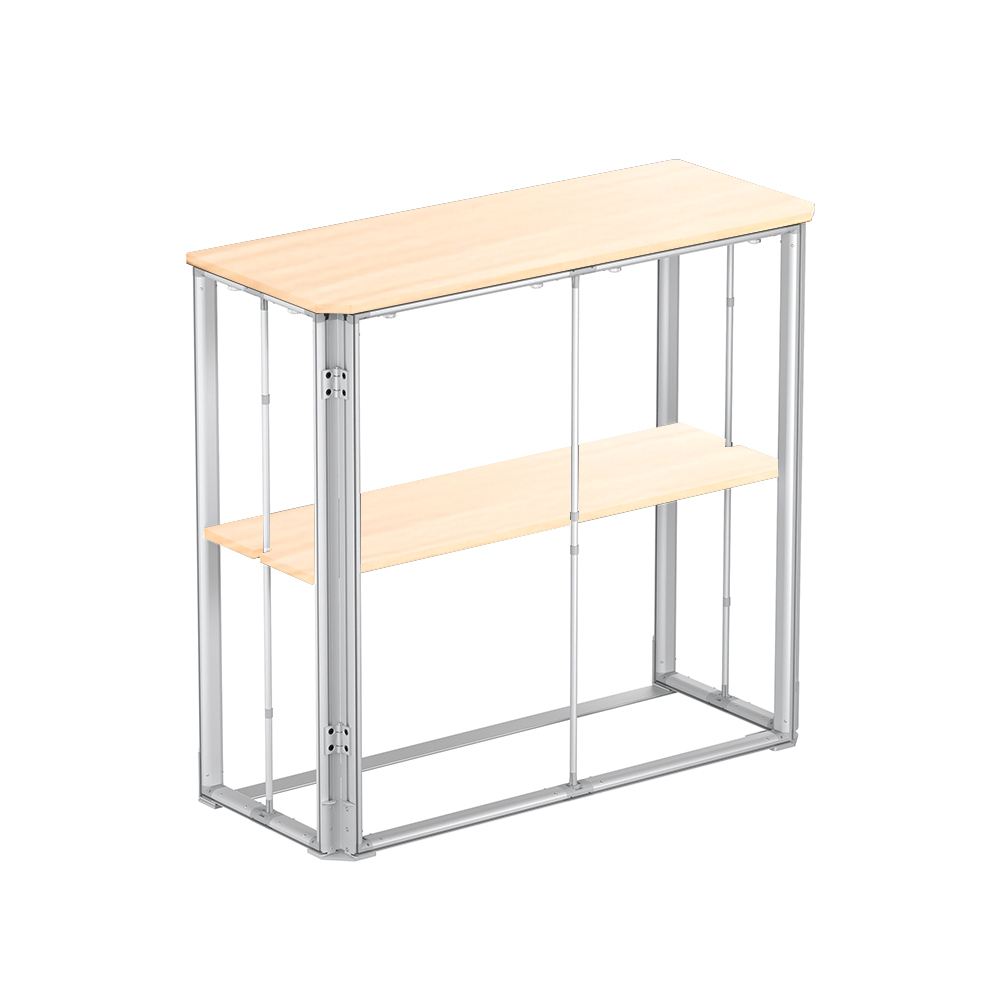

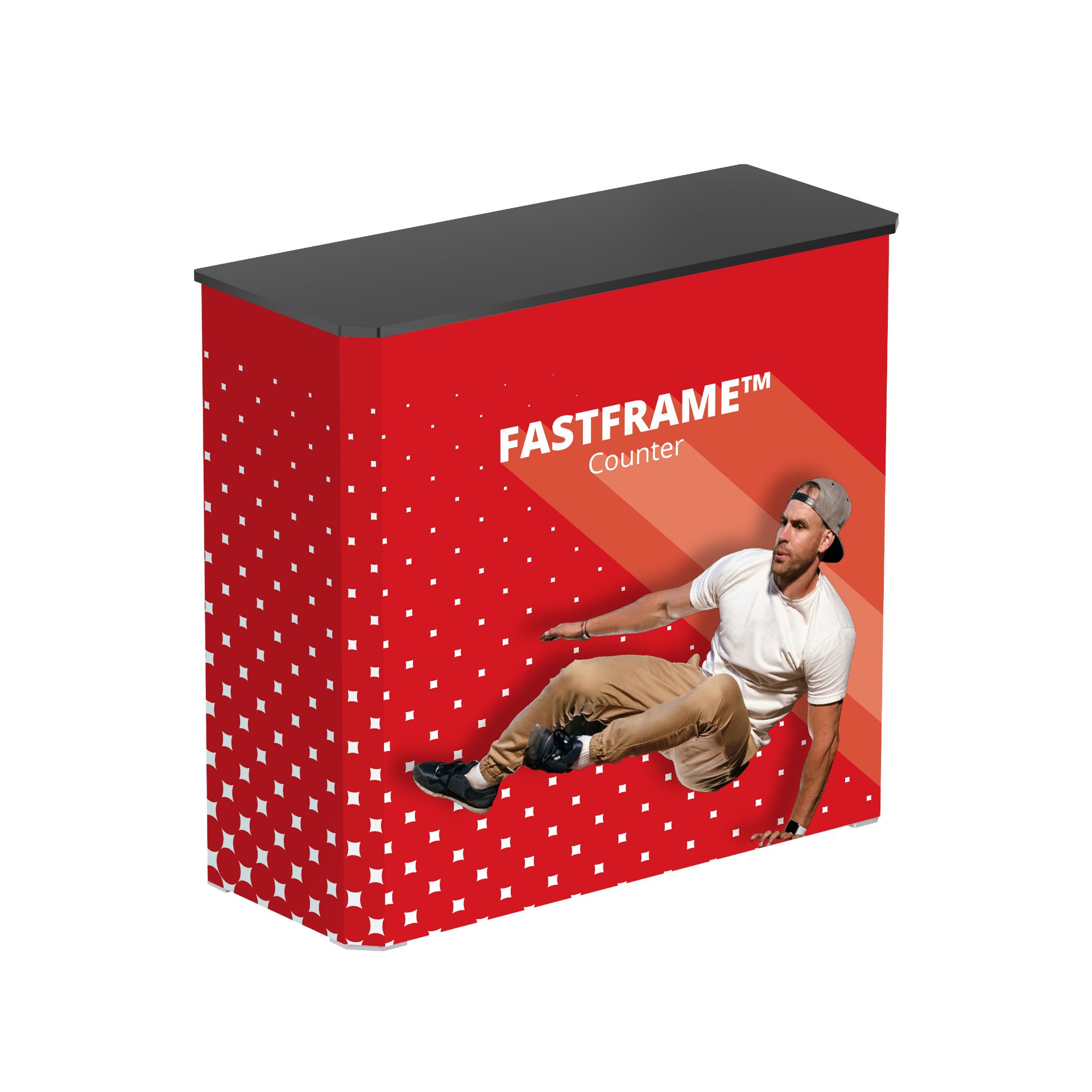

Fastframe™ Counter Hardware

Professional SEG Counter – sleek, portable and built for high-impact branding. The Fastframe™ Counter is a lightweight, professional-grade portable unit ideal for trade shows, exhibitions, retail displays and brand activations. Designed for convenience and impact, this pre-assembled aluminium frame counter combines tool-free setup with a sturdy, reliable structure.

A single SEG silicone edge graphic wraps seamlessly around the display unit, delivering a polished, high-end finish. With generous countertop space of 1020mm wide x 410mm deep, it is ideal for showcasing products, displaying promotional materials or engaging with customers.

Fastframe™ Counter Hardware

SKU: FF-COUNTER-BLK | FF-COUNTER-BE

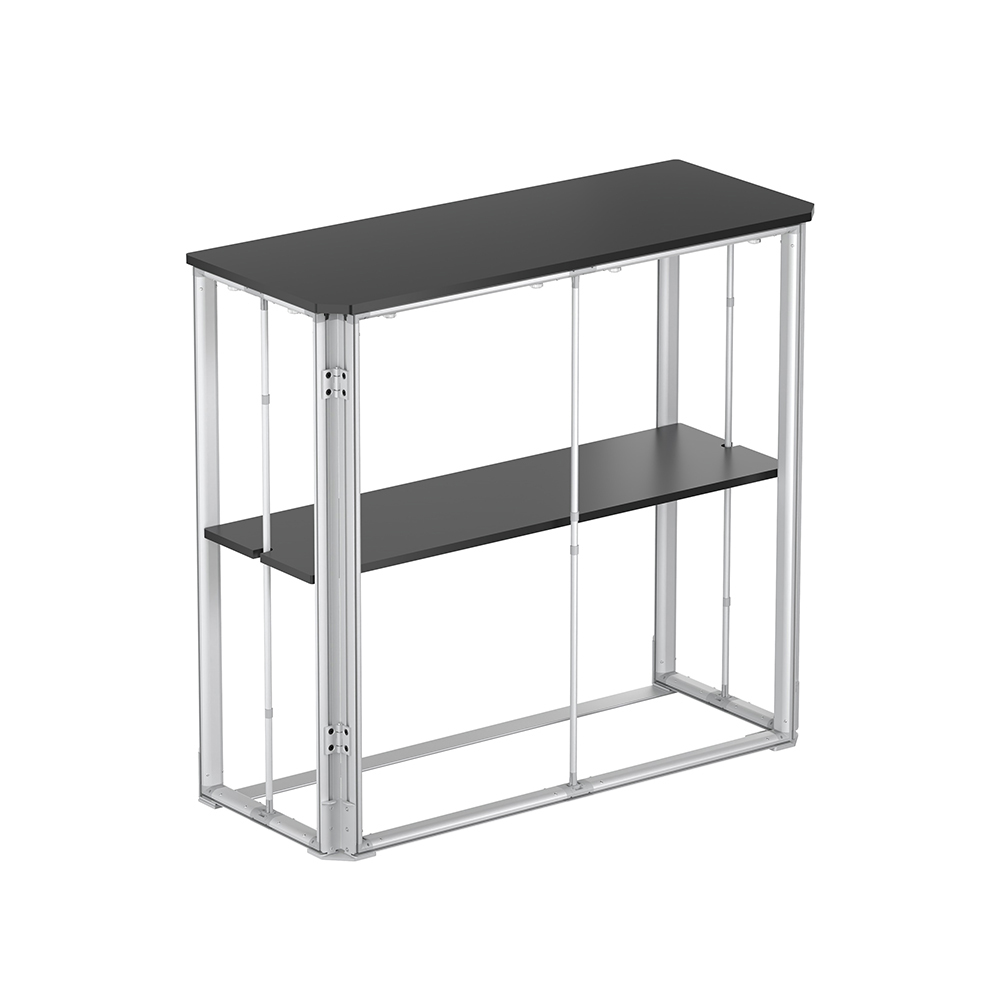

Counter Top & Internal Shelf

Counter Top Space

1020mm wide x 410mm deep

Counter Top Load Bearing

60kg

Internal Shelf Bearing

10kg

Black Counter Top

FF-COUNTER-BLK

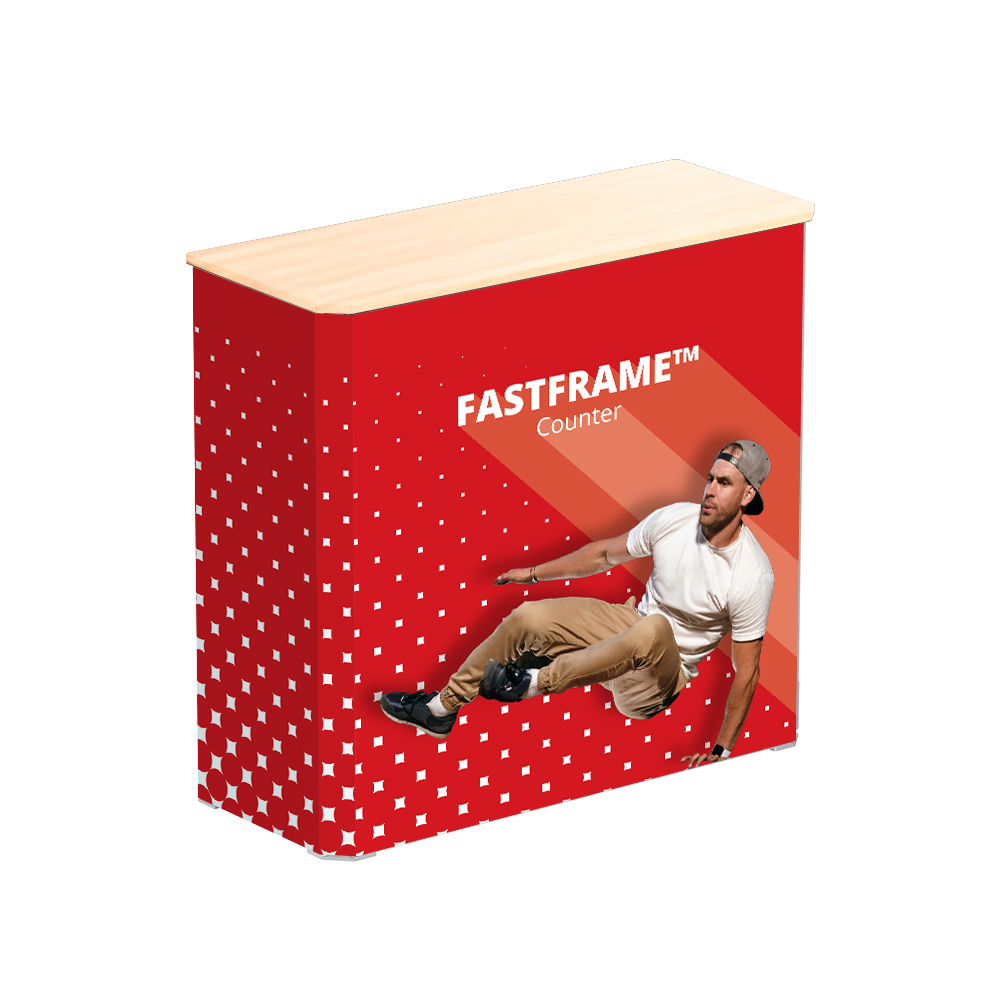

Beech Counter Top

FF-COUNTER-BE (not available in the UK)

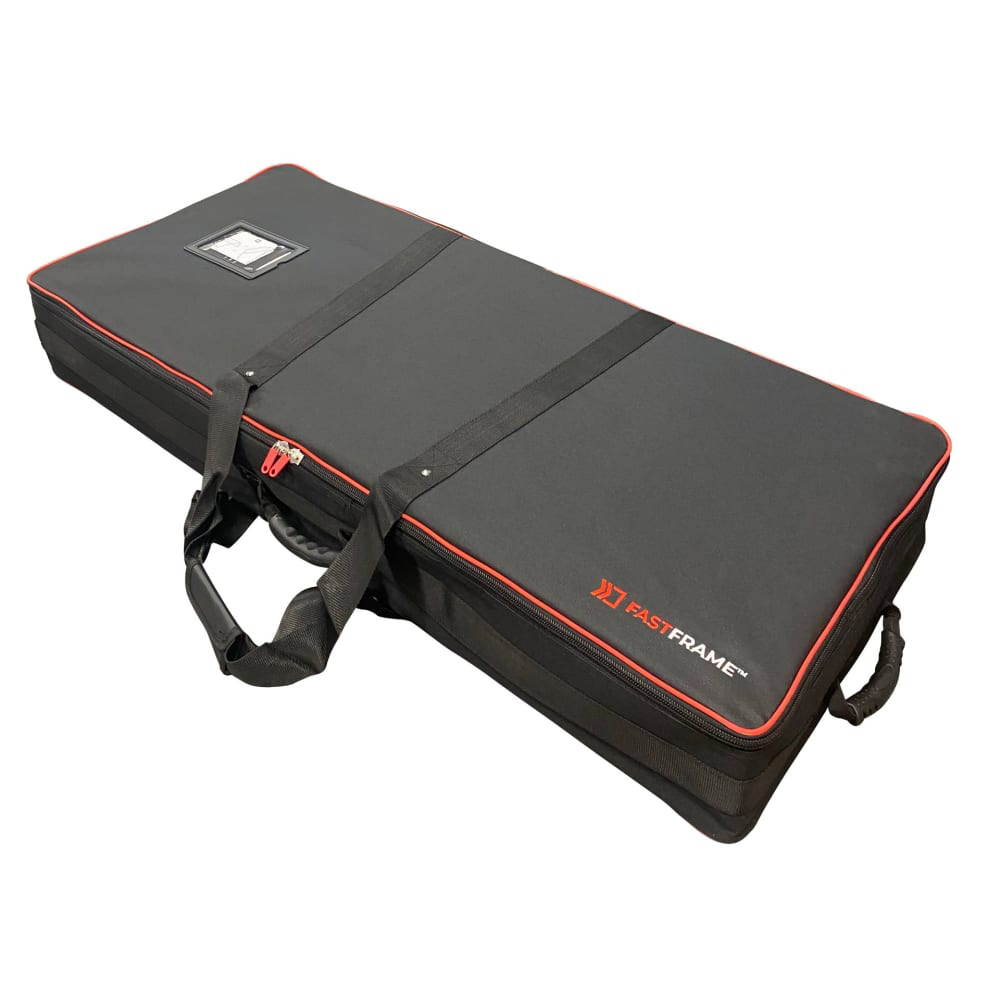

Wheeled Padded Bag

External Size

1160mm x 175mm x 460mm

Internal Size

1090mm x 170mm x 460mm

Bag Type

Branded Fastframe™ padded carry bag

Features

Full wraparound zip and convenient shoulder strap

Graphic Type: Single seamless SEG graphic.

Assembled Data: H x W x D	Net Weight
1025 x 1020 x 410mm	16.03kg

Package Dimensions: L x W x D	Packaged Weight
1190 x 470 x 180mm	21kg

Fastframe™ Connectors

Fastframe™ connectors allow display frames to be linked, angled and configured into larger modular exhibition environments. From seamless backwalls and corners to arches, T-shape layouts and multi-directional structures, connectors expand Fastframe™ beyond standalone displays into scalable branded spaces using the same reusable frame system.

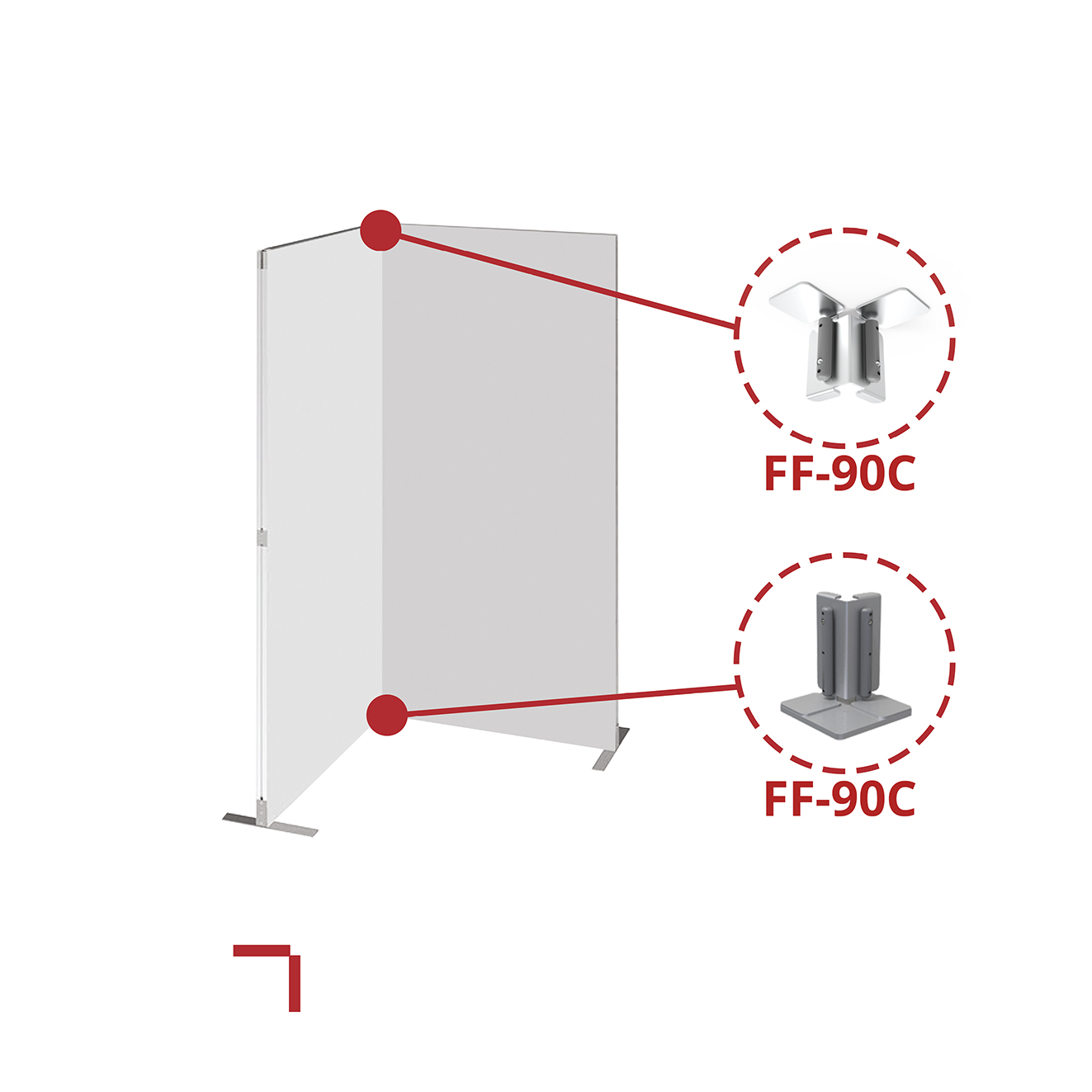

Create professional 90° corner and L-shape layouts.

Build archways, entrances and feature structures.

Create zoned spaces, partitions and T-shape displays.

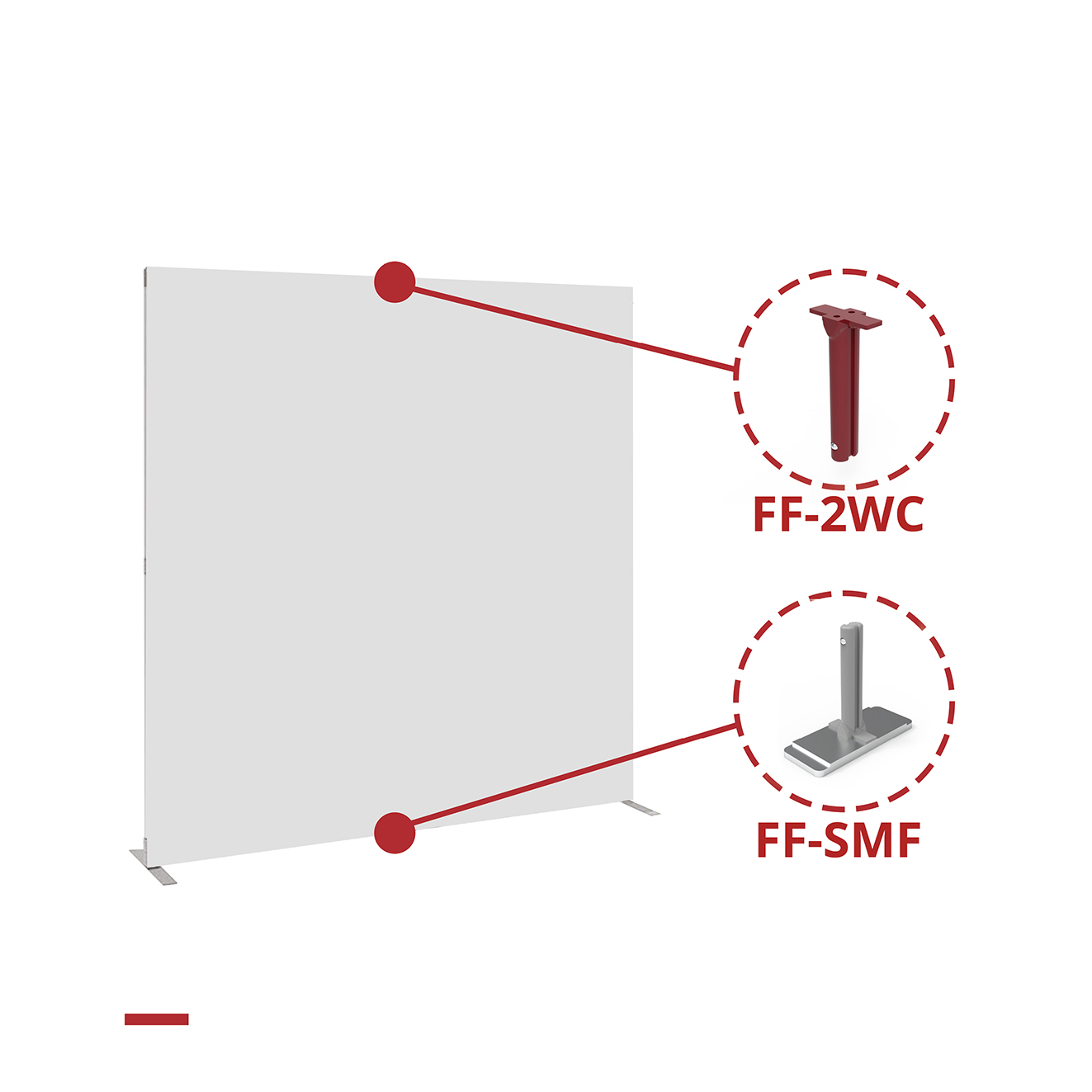

Link multiple frames into extended modular walls.

Image	SKU	Connector	Best For

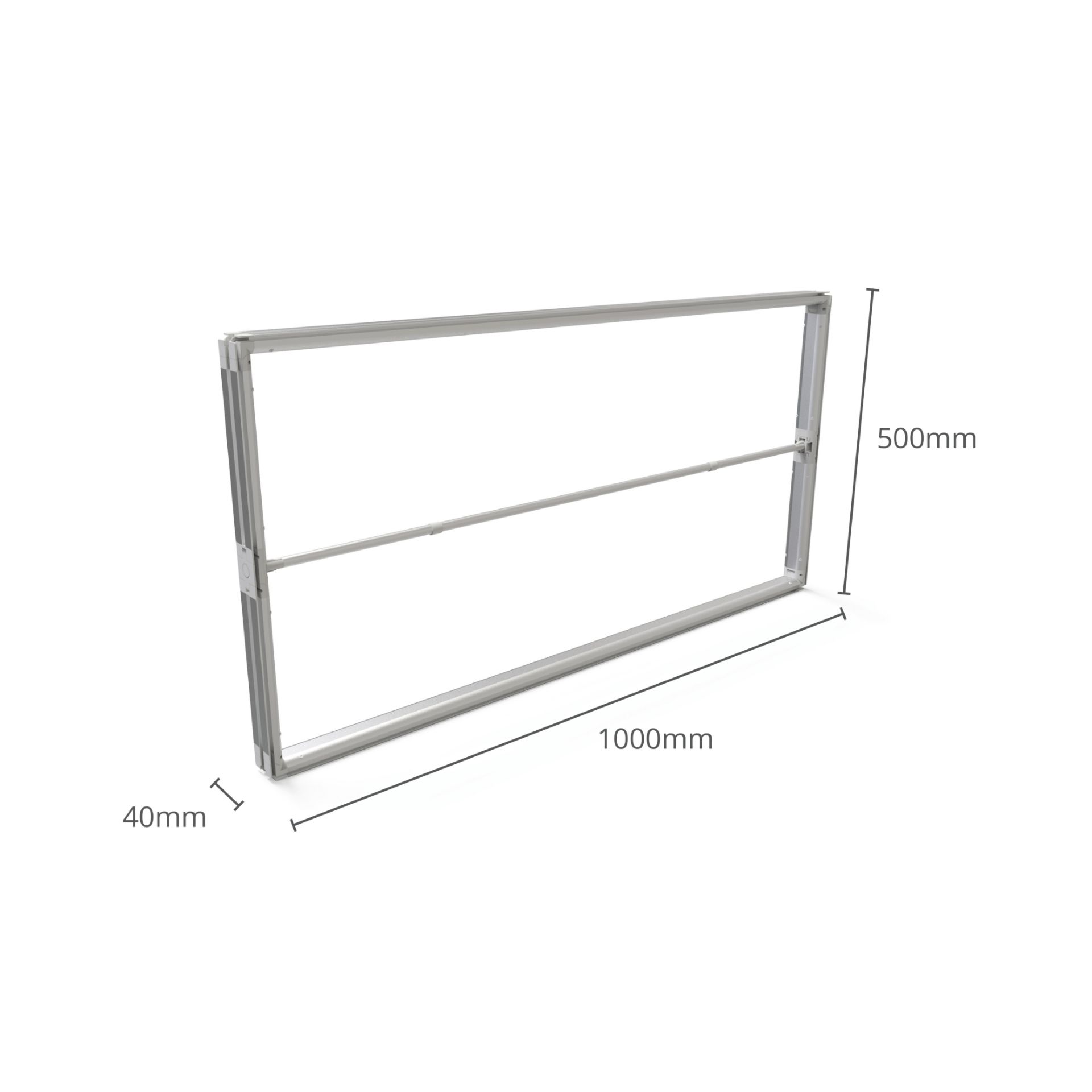

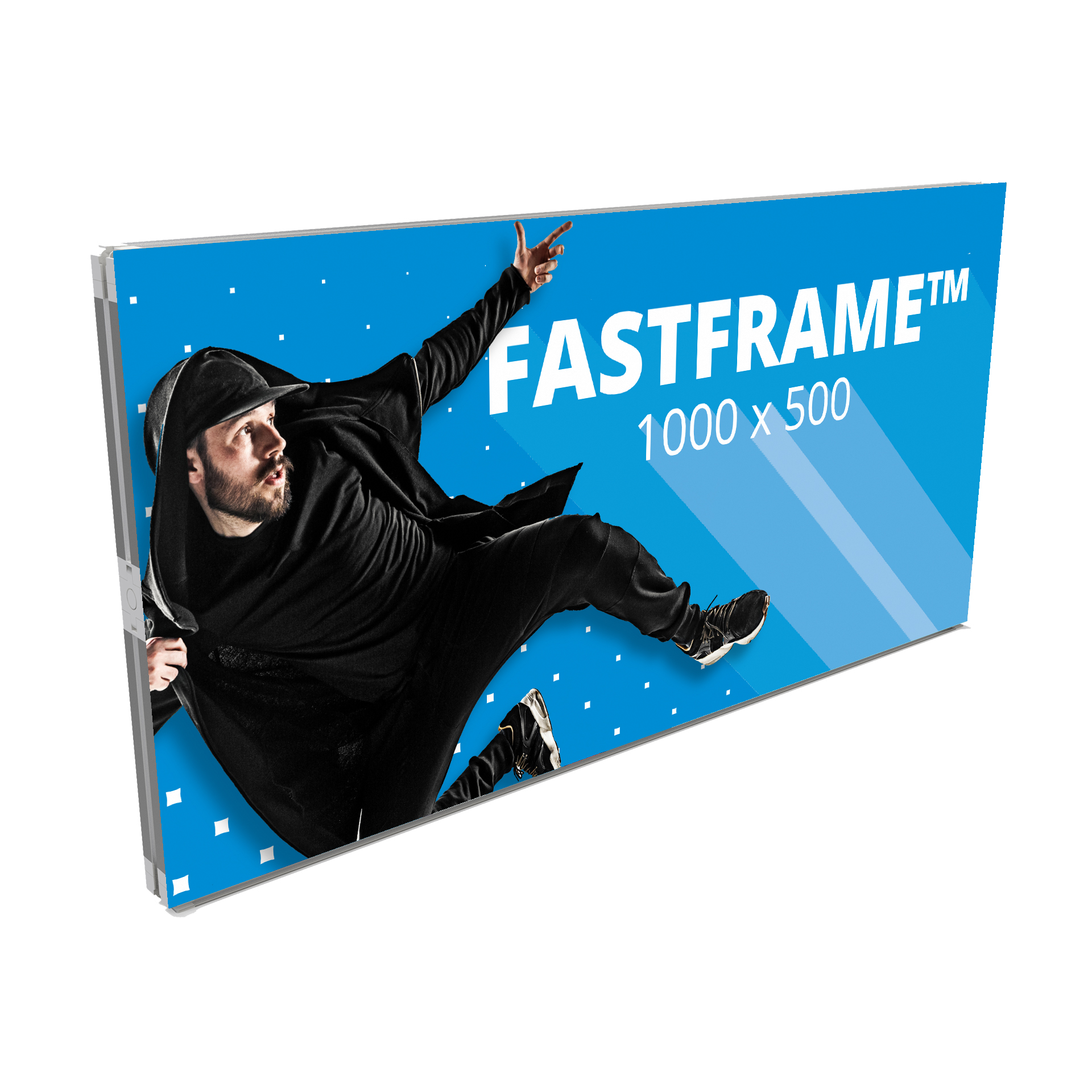

	FF-2WC	Two-Way Connector	Links Fastframe™ units vertically, such as placing a 1000 x 500mm frame above a larger display. It can also add extra support when frames are joined side-by-side.

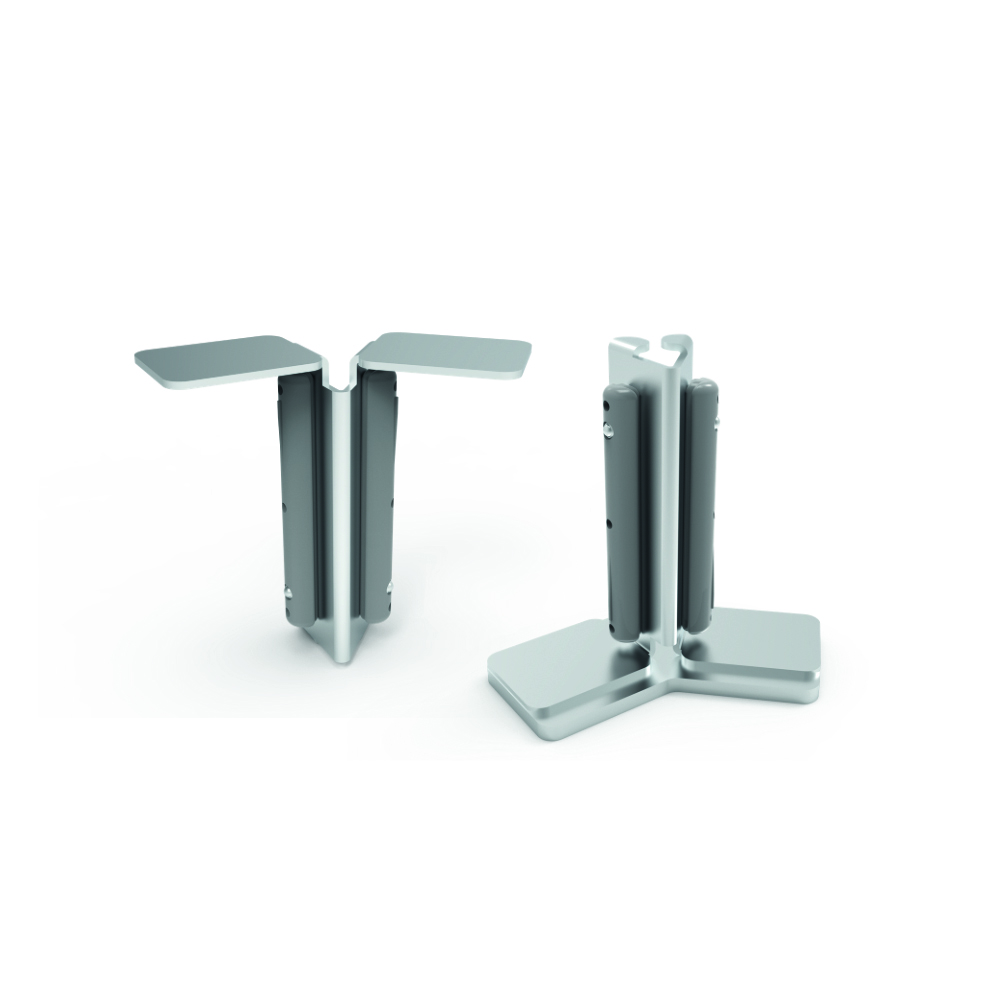

	FF-45C	45° Connector Kit	Creates angled Fastframe™ layouts for dynamic exhibition spaces, angled feature walls and pop-up style display configurations.
	FF-4WC	Four-Way Connector	Connects four Fastframe™ frames together in straight-line configurations for larger modular display walls and extended exhibition backdrops.

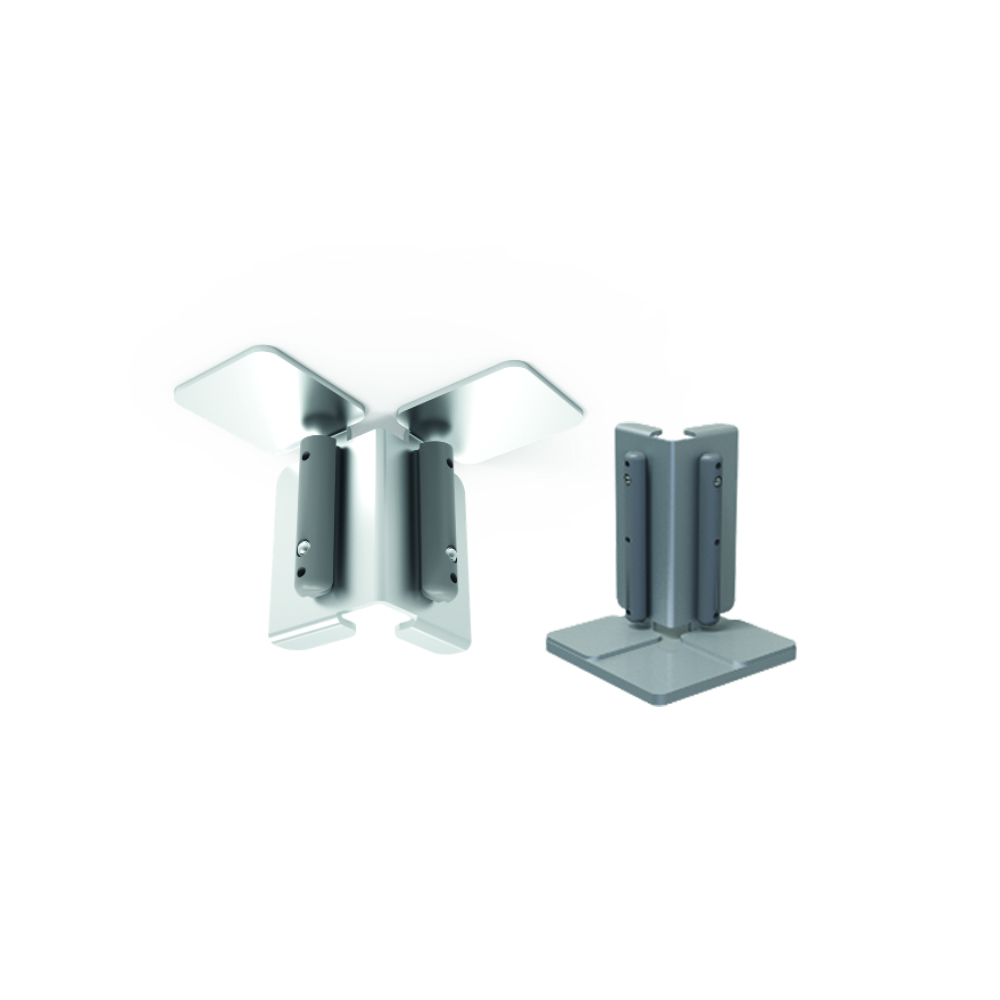

	FF-90C	90° Connector Kit	Joins two Fastframe™ frames at a right angle to create professional corner displays, L-shape exhibition stands and modular booth layouts.

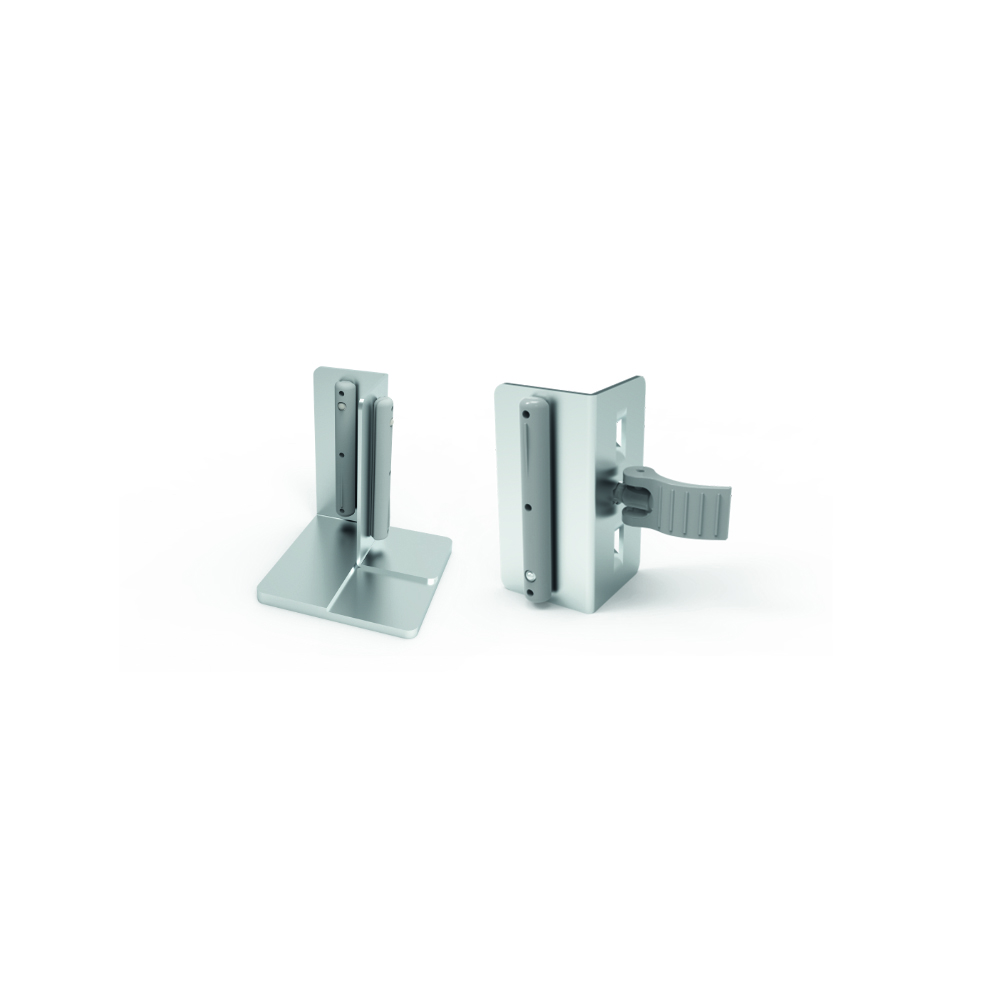

	FF-90LIC	Left Internal Corner Kit	Creates inward-facing left corner joins for more advanced modular Fastframe™ layouts and enclosed exhibition spaces.
	FF-90MIC	Middle 90° Connector Pair	Supports larger 90° corner connections and helps reduce visible gaps that can occur when large tensioned frames are connected together.
	FF-90RIC	Right Internal Corner Kit	Creates inward-facing right corner joins for more advanced modular Fastframe™ structures and enclosed display environments.

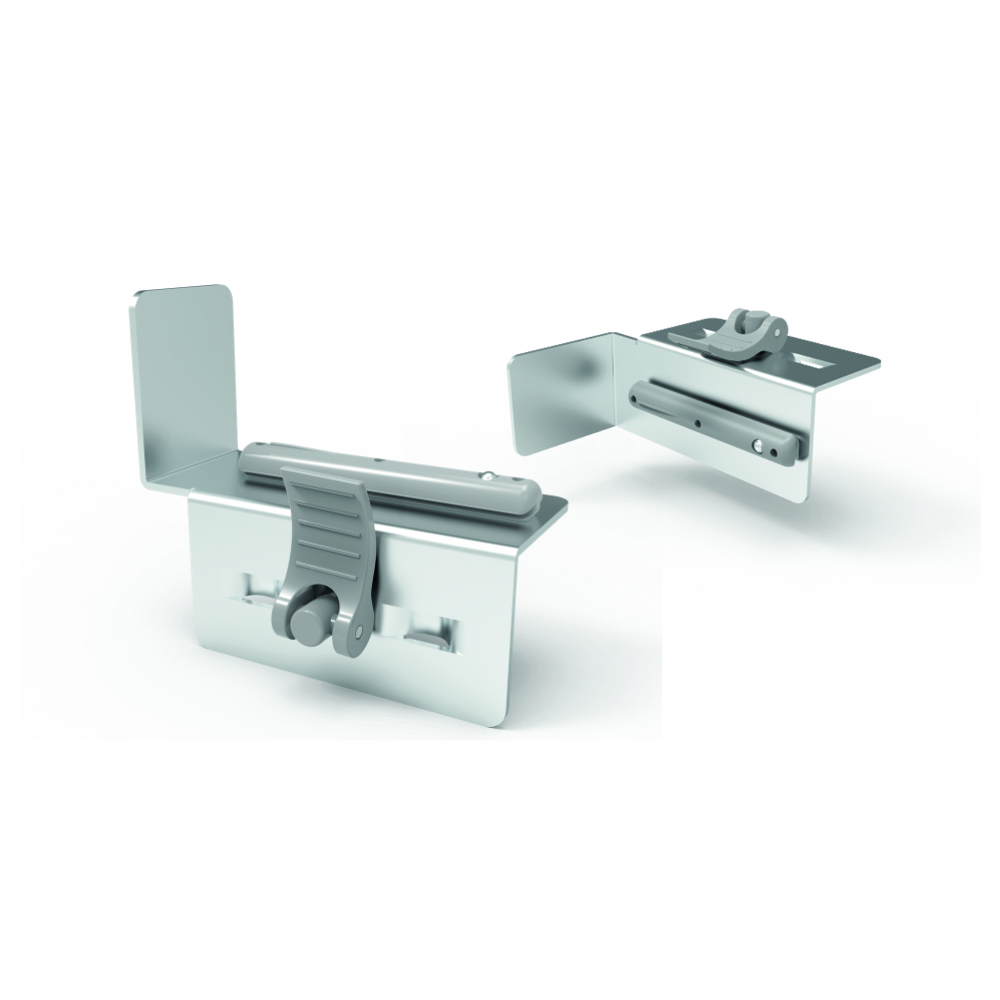

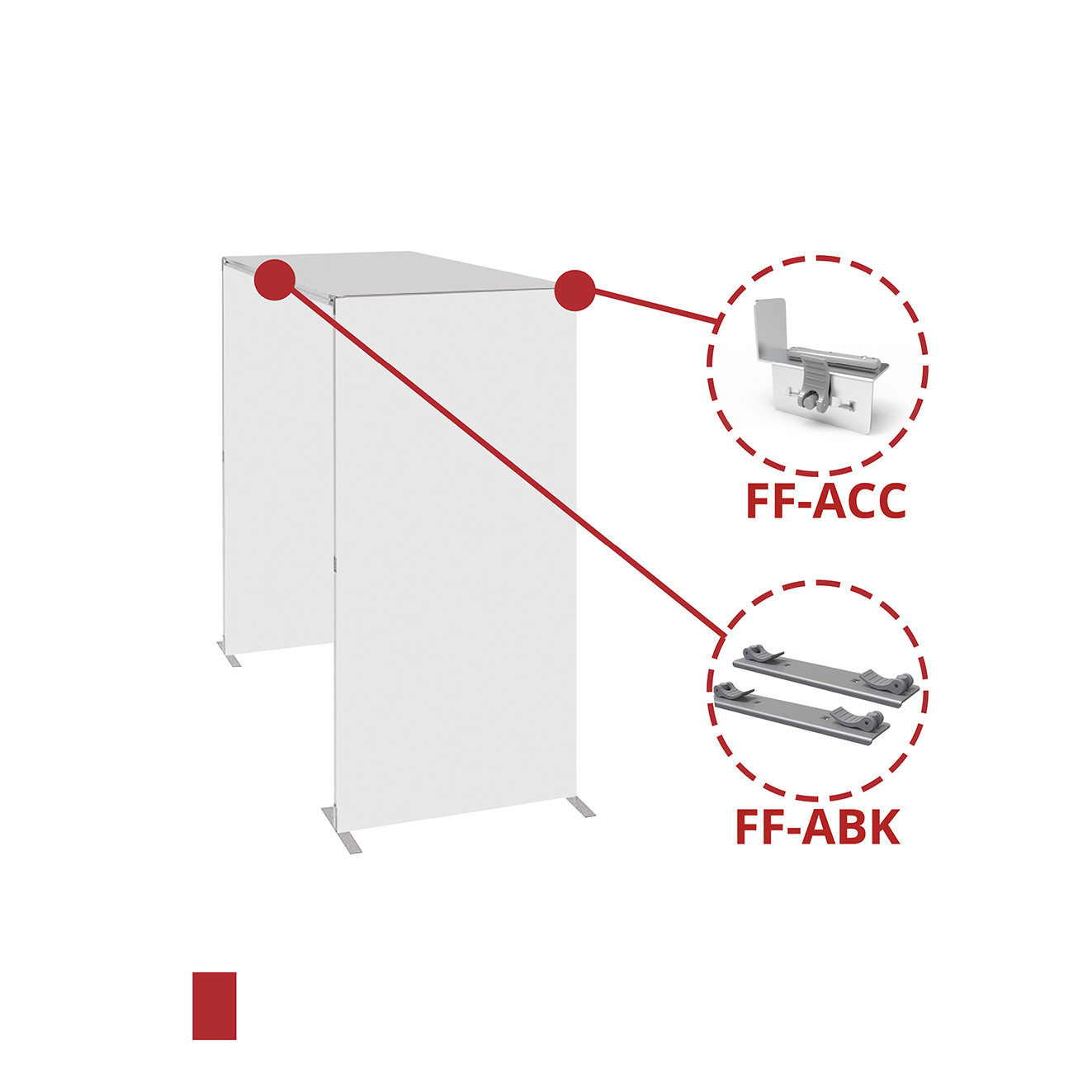

	FF-ACC	Arch Kit	Allows Fastframe™ displays to be configured into archway structures for entrances, feature displays and high-impact exhibition stand designs.

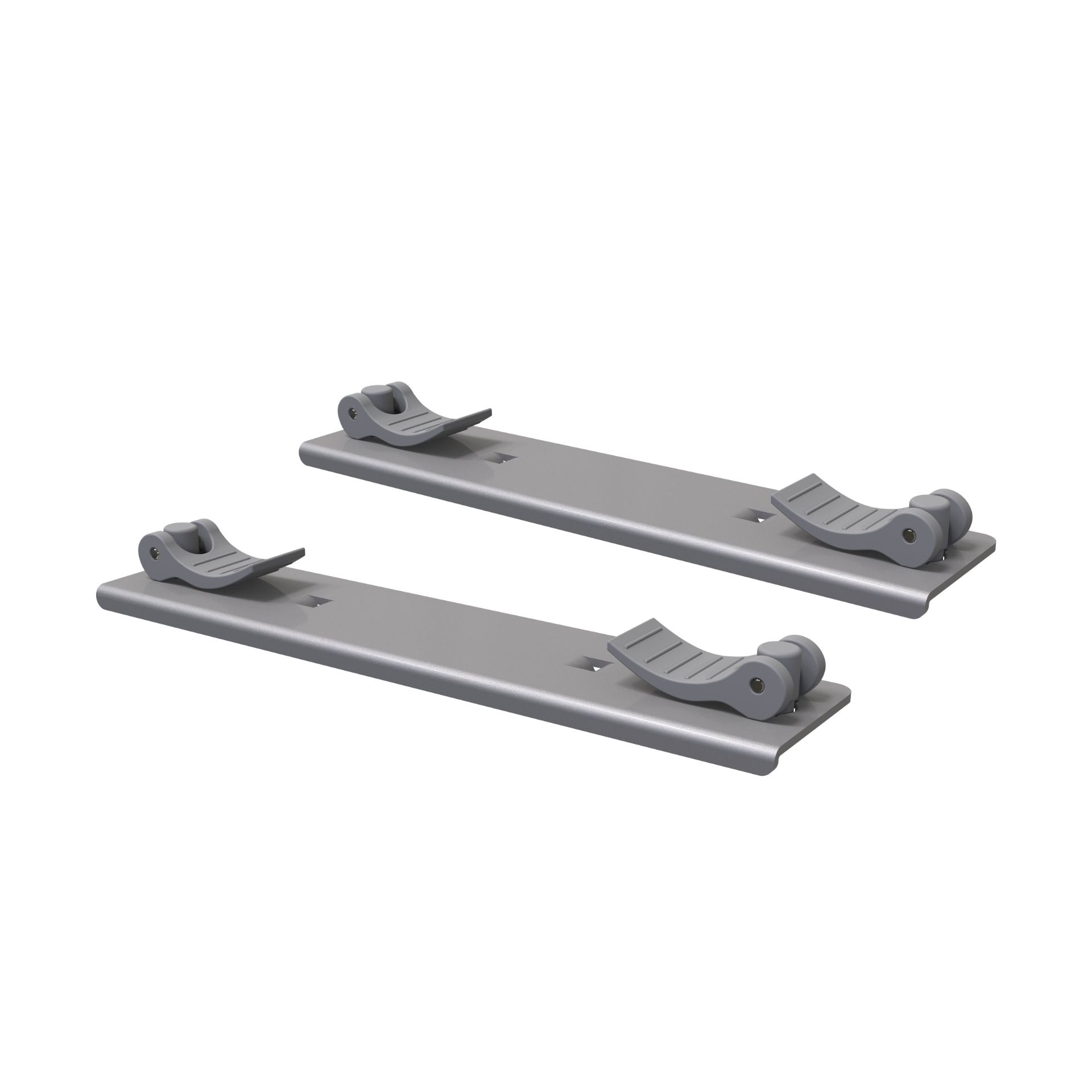

	FF-ABK	Arch Brace Kit	Support brace specifically designed for the top horizontal frame within Fastframe™ arch configurations, helping improve stability and structural support across larger arch layouts.

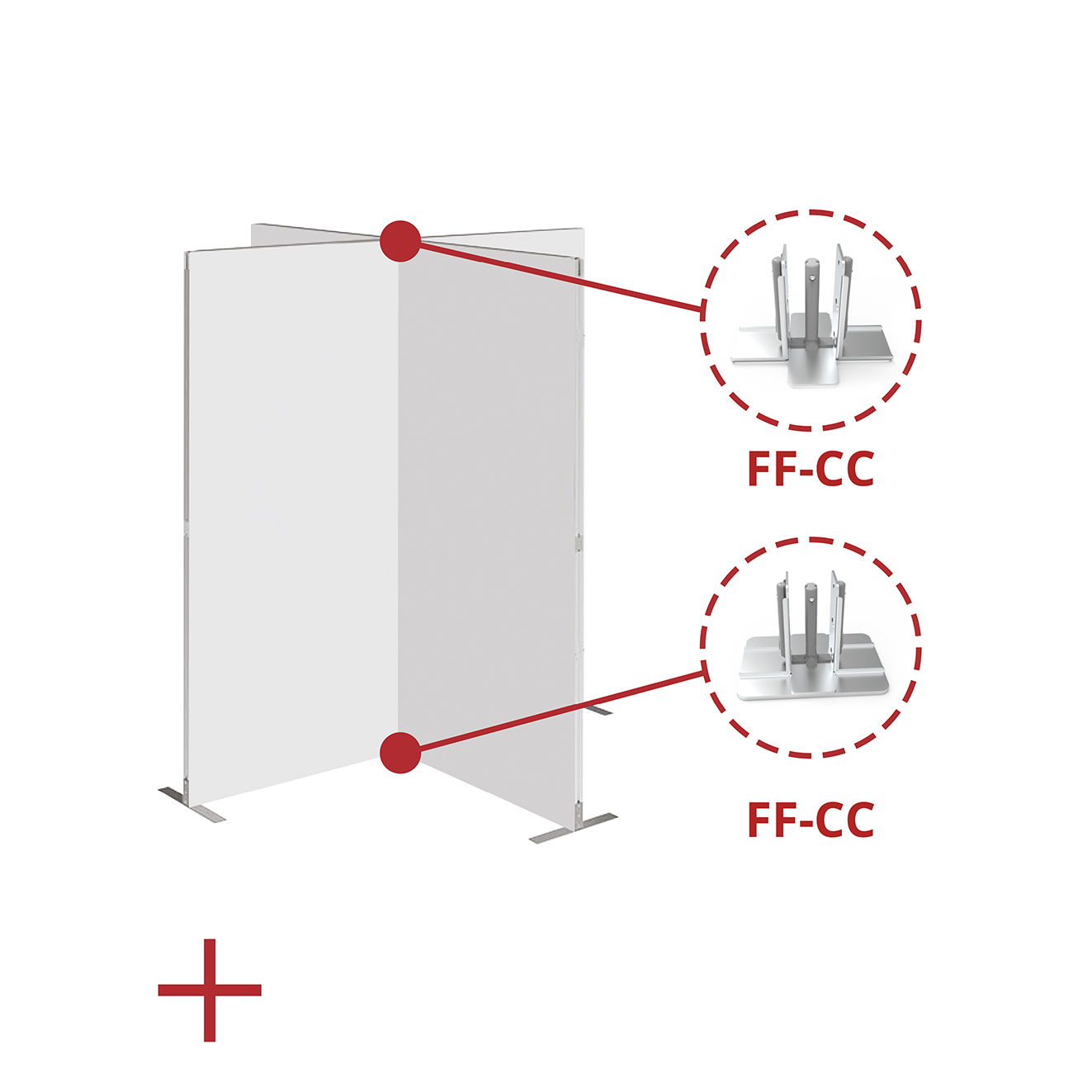

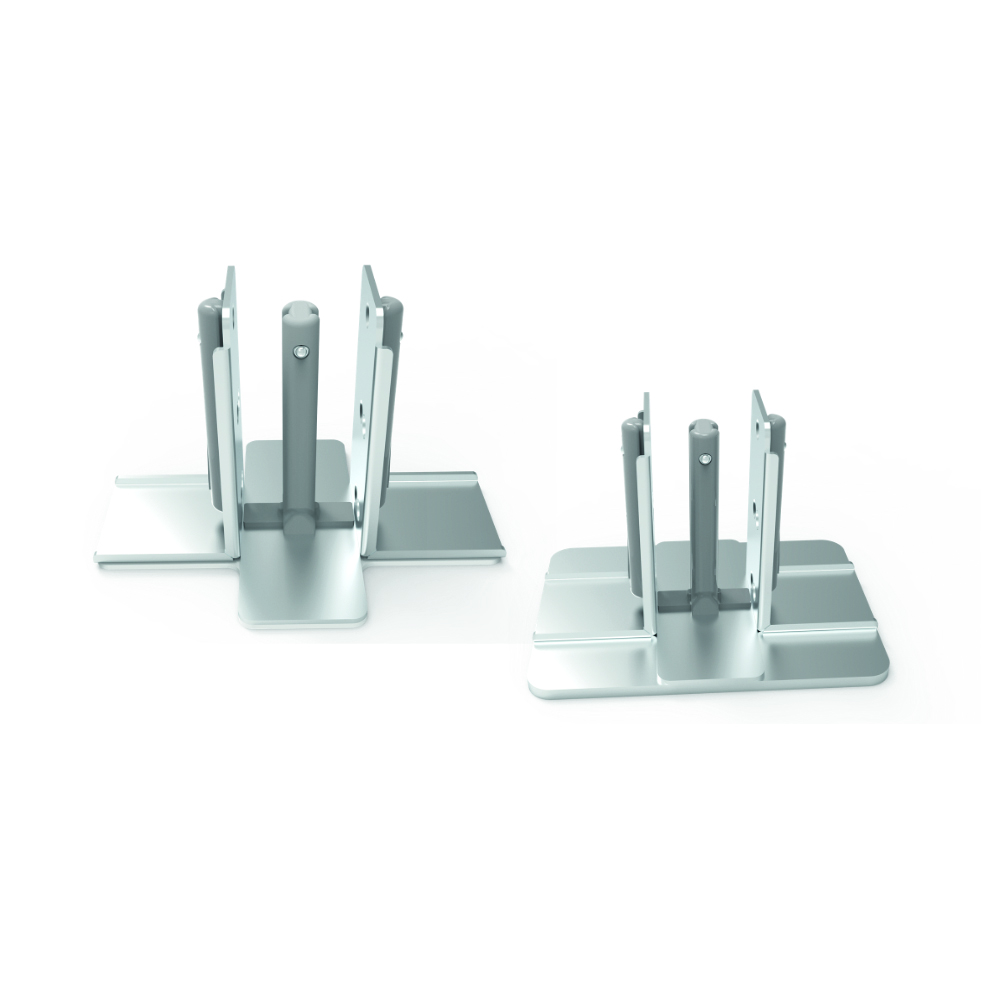

	FF-CC	Cross Connector Kit	Connects four Fastframe™ frames in a cross-style configuration for large modular display structures and multi-directional layouts.
	FF-TC	T-Shape Connector Kit	Joins three Fastframe™ frames in a T-shaped configuration for partitioning spaces, directional displays and zoned exhibition layouts.
	FF-YC	Y-Shape Connector Kit	Connects three Fastframe™ frames together in a Y-shaped layout for branched display arrangements and creative modular structures.

Fastframe™ Stand Accessories

Fastframe™ stand accessories add practical functionality to modular display environments. Screen mounts, shelves, storage brackets and wheeled transport bags help turn Fastframe™ layouts into more useful exhibition, retail and event spaces.

Fastframe™ Screen Mount Kit

SKU: FF-SMK

Purpose-built screen integration for 1000mm Fastframe™ backwalls, helping add video, animation, presentations or live digital content to modular display environments.

Compatibility1000mm width Fastframe™ structures with an arch.

Screen Support26" to 65" screens up to 10kg.

VESA Patterns200 x 200, 200 x 400, 300 x 300 and 400 x 400mm.

Best ForExhibitions, trade shows and branded environments using digital content.

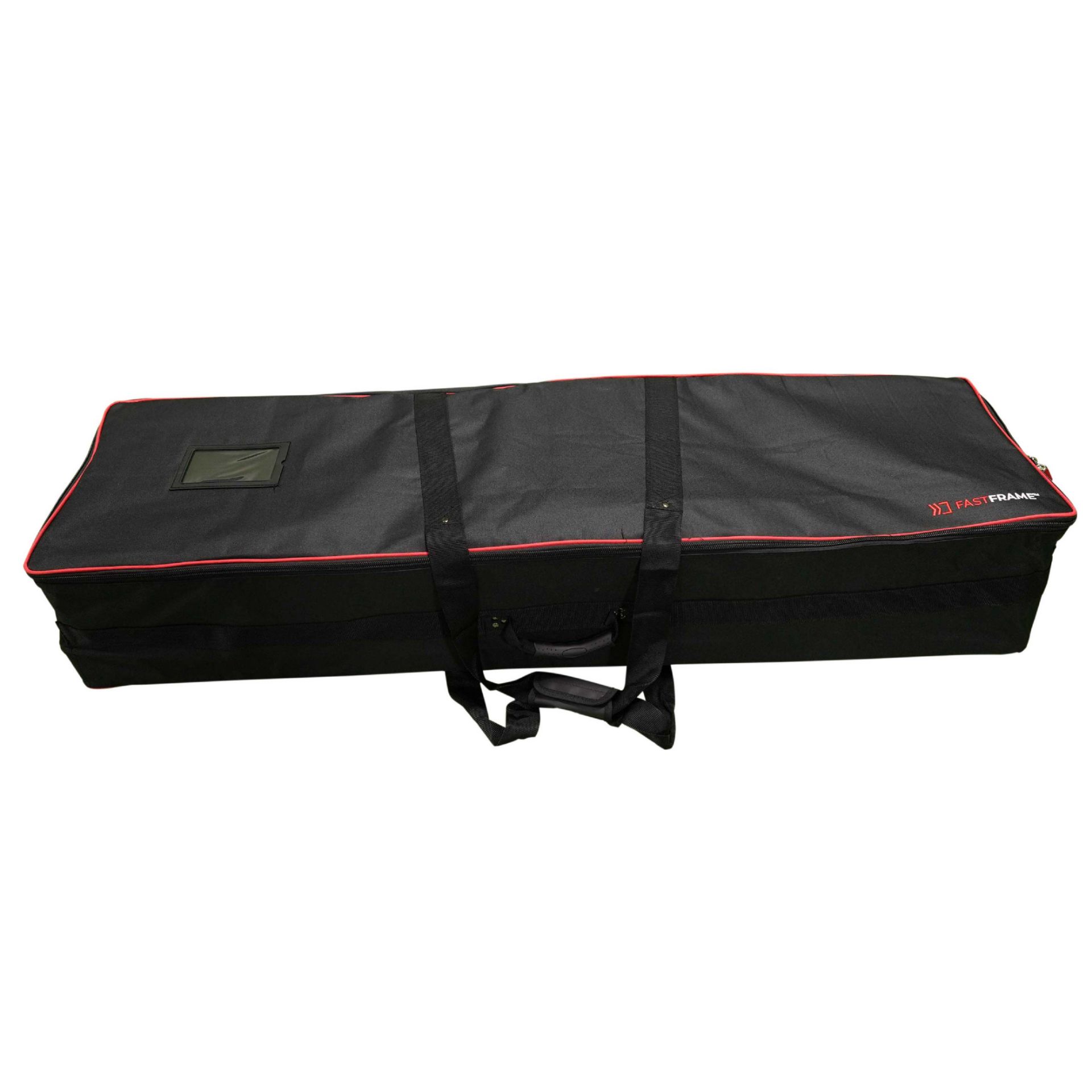

Fastframe™ Wheeled Bag

SKU: FF-WB

Padded wheeled transport bag for safely storing and moving Fastframe™ display hardware and graphics between events, venues and installations.

CapacityHolds up to four hardware pieces with graphics.

CompatibilityFor structures up to 1200mm wide and 2400mm high.

Internal Size1415(w) x 244(h) x 390(d) mm.

Best ForMobile display teams, busy event schedules and repeat installations.

Fastframe™ Door Mount Bracket 1000mm

SKU: FF-DMB-1000

Creates concealed storage within compatible Fastframe™ displays, helping keep exhibition spaces clean, professional and clutter-free.

Compatibility1000mm width Fastframe™ structures only.

Use CaseHidden storage for personal items, stock, literature or marketing materials.

Best ForExhibitions and events where storage needs to be hidden within the display.

Important NoteFrames sold separately.

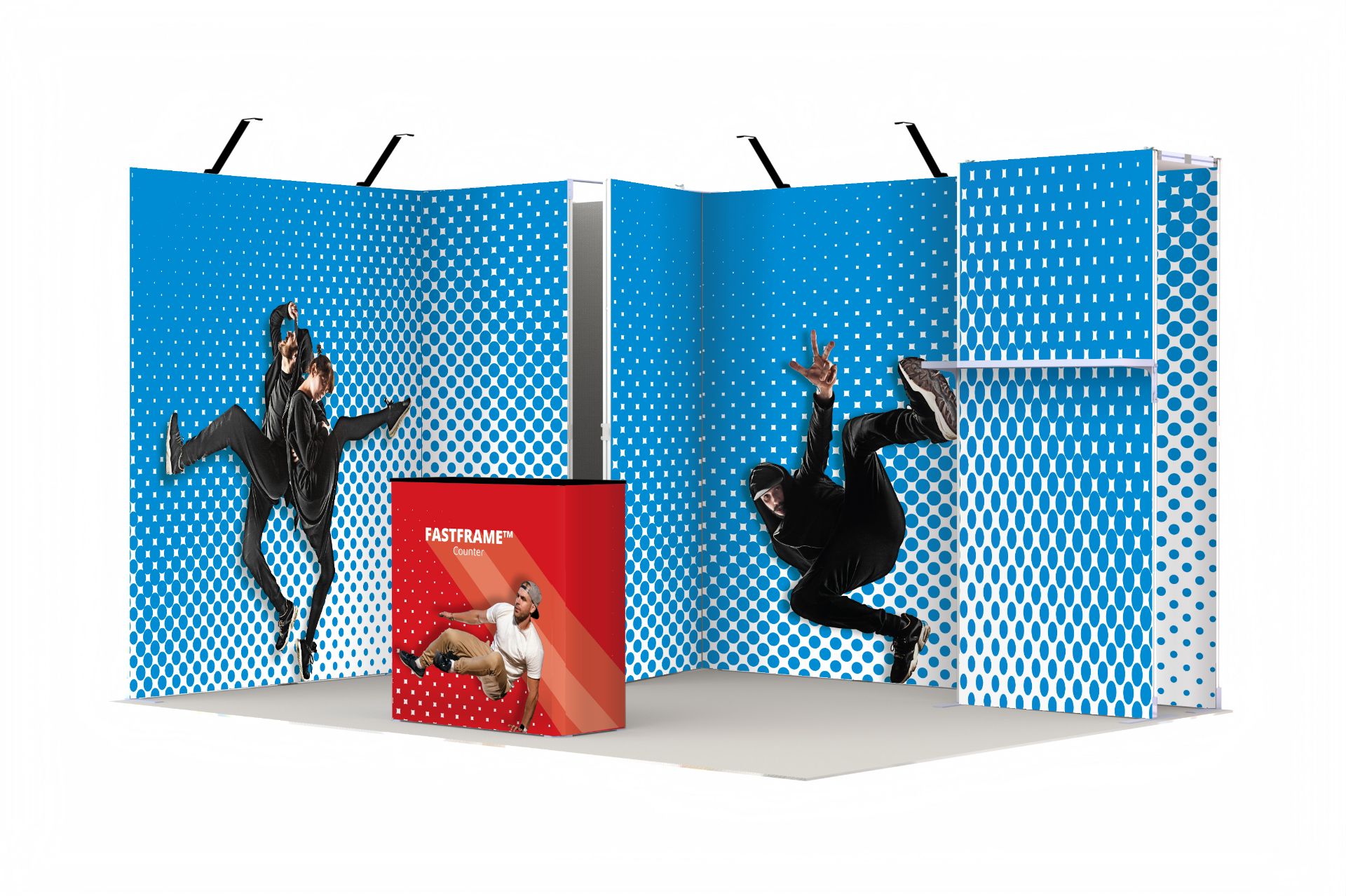

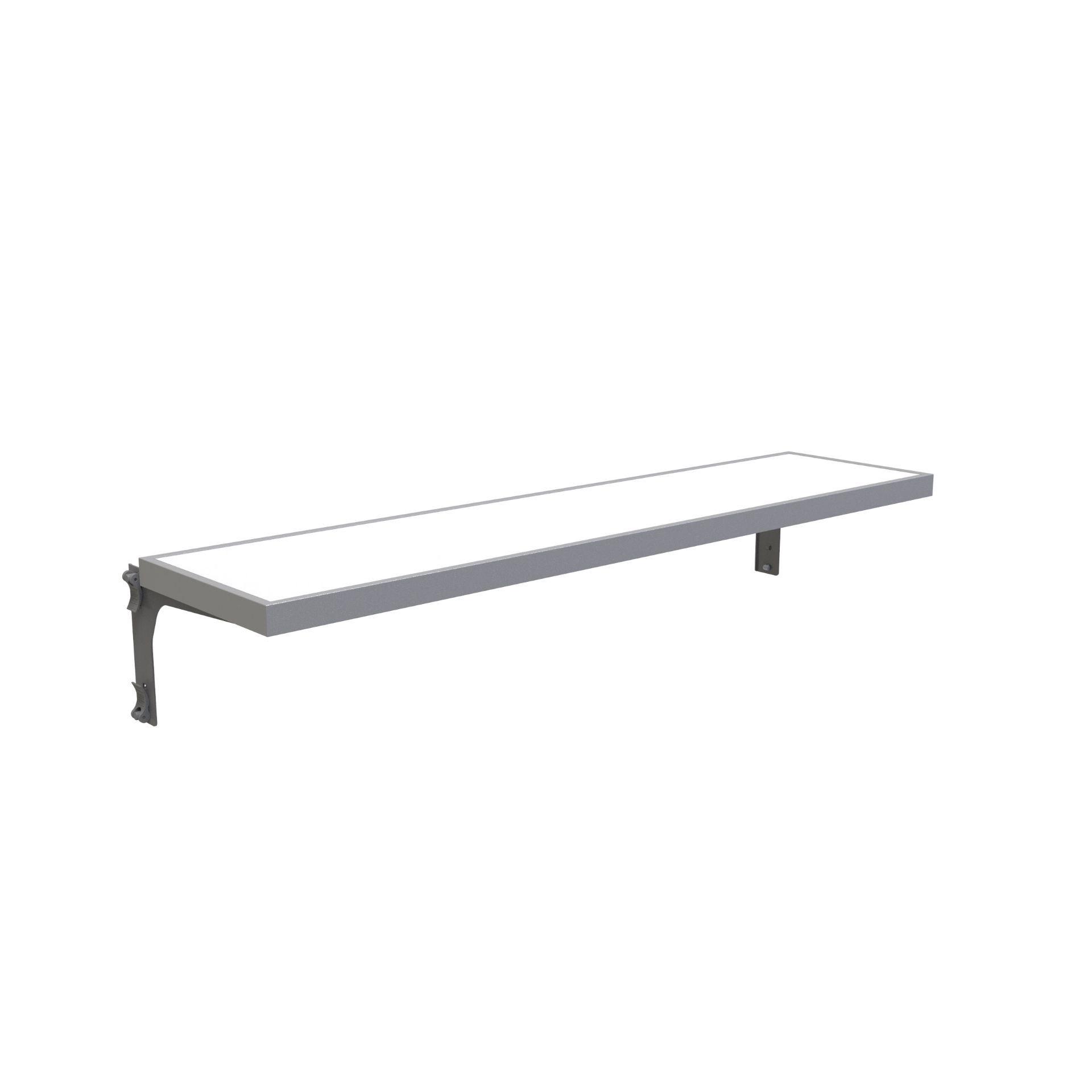

Fastframe™ Shelf Kit

SKU: FF-SK

Compact shelving for compatible Fastframe™ backwalls, ideal for displaying products, samples, brochures or demonstration materials.

Compatibility1000mm width Fastframe™ structures only.

Shelf LoadEach shelf supports up to 5kg.

Use GuidanceMaximum of two shelves per frame for balance and stability.

Best ForRetail events, product demos, exhibitions and presentation spaces.

Fastframe™ Exhibition Stand Inspiration

Fastframe™ modular exhibition stands are built using reusable frame systems, seamless SEG graphics and configurable accessories. The examples below show both the finished branded exhibition stand and the underlying Fastframe™ framework structure, helping demonstrate how the system can scale from compact exhibition layouts to larger immersive branded environments.

Fastframe™ 9M² Exhibition Stand

Compact modular exhibition stand designed for 3m x 3m exhibition spaces, combining seamless branded graphics, integrated storage and customer engagement areas.

Configuration Highlights

• Linked seamless SEG backwalls
• Integrated hidden storage area
• Customer engagement counter
• Reusable modular framework
• Compact exhibition footprint

View 9M² Stand

Components Used

SKU	Description	Qty

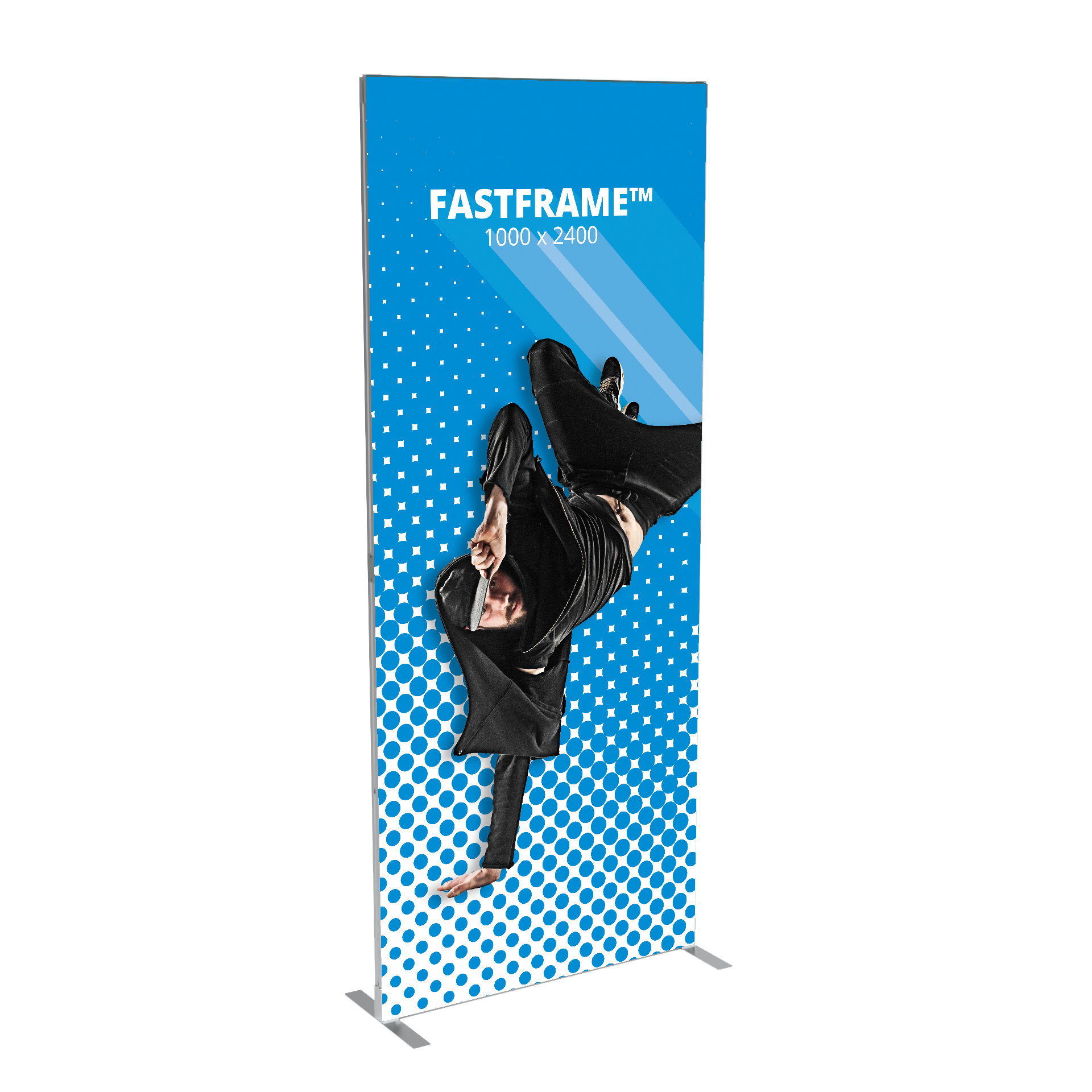

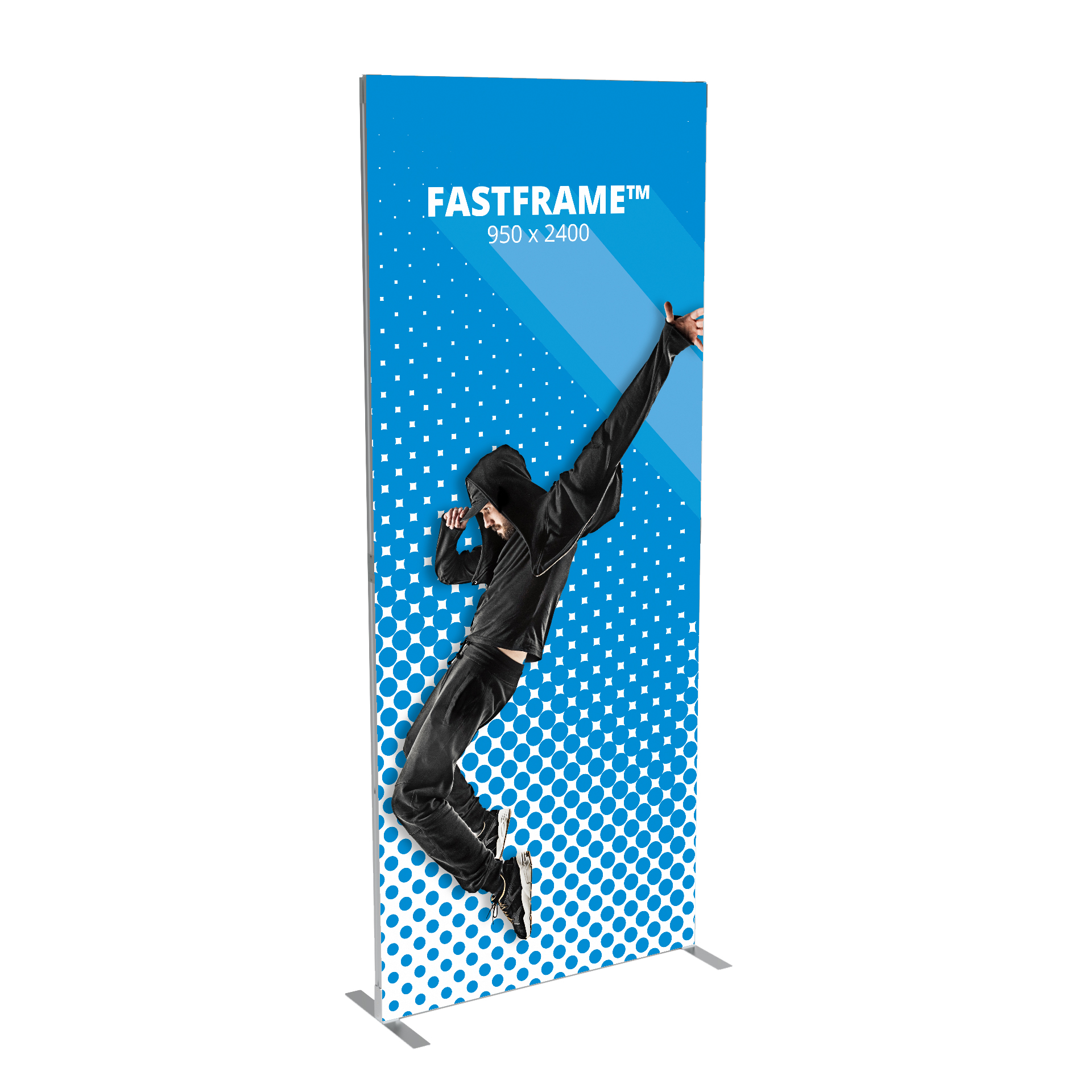

FF-95X240	Fastframe™ 950 x 2400mm with feet	4
FF-100X240	Fastframe™ 1000 x 2400mm with feet	4
FF-SMF	Small middle foot	2
FF-SHF	Side half feet pair	1
FF-2WC	Two-way connector	2
FF-DMB-1000	Storage connection kit	1
LED-EXHIB-ARM-BDLK	LED exhibition light kit	2
FF-COUNTER-BLK	Fastframe™ counter black	1

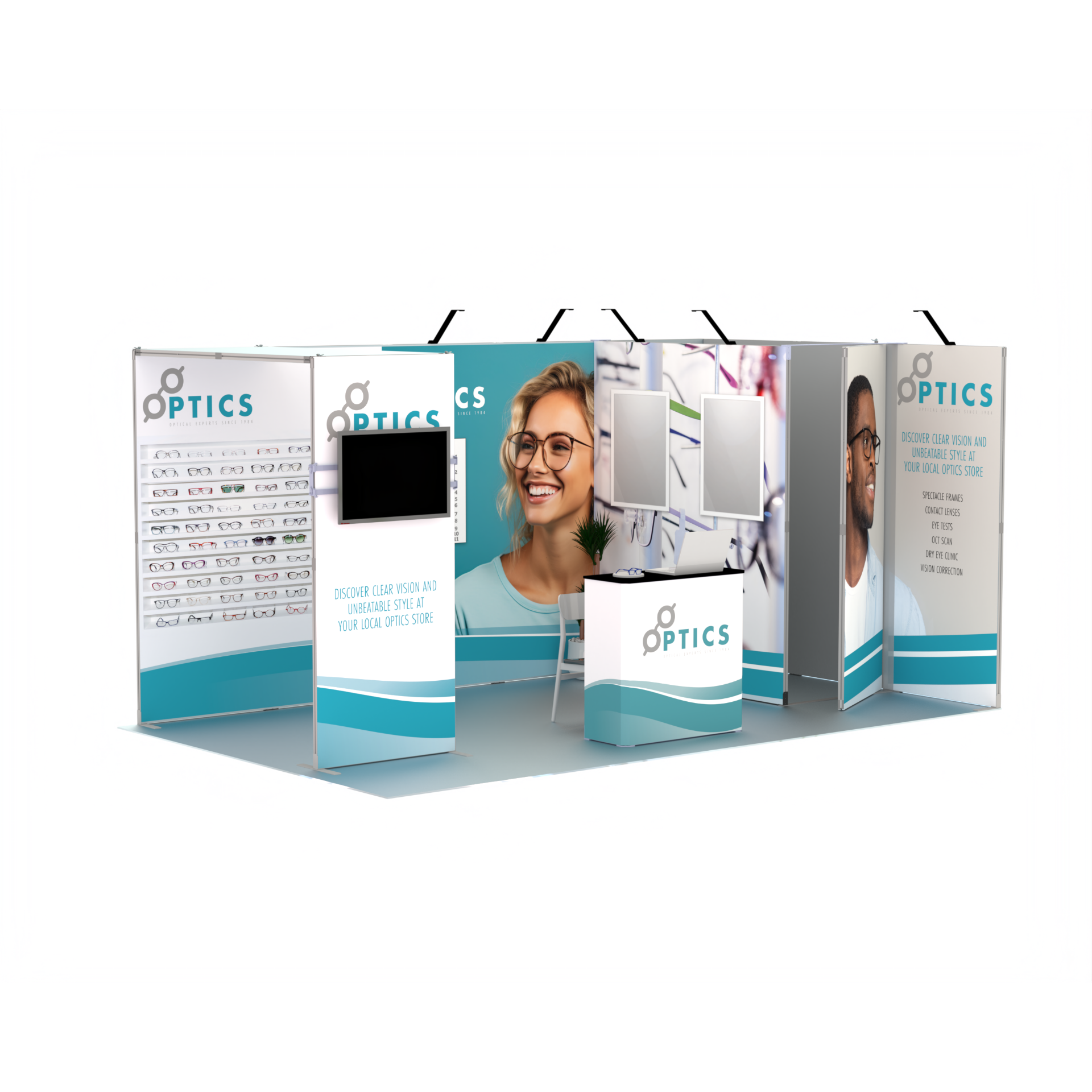

Fastframe™ 15M² Exhibition Stand

Larger modular exhibition layout with arch feature, screen support, hidden storage and customer engagement space for a more immersive branded environment.

Configuration Highlights

• Integrated arch feature
• Digital screen support
• Hidden storage area
• Zoned exhibition layout
• Reusable modular architecture
• Large-format seamless graphics

View 15M² Stand

Components Used

SKU	Description	Qty
FF-95X240	Fastframe™ 950 x 2400mm with feet	4
FF-100X240	Fastframe™ 1000 x 2400mm with feet	8

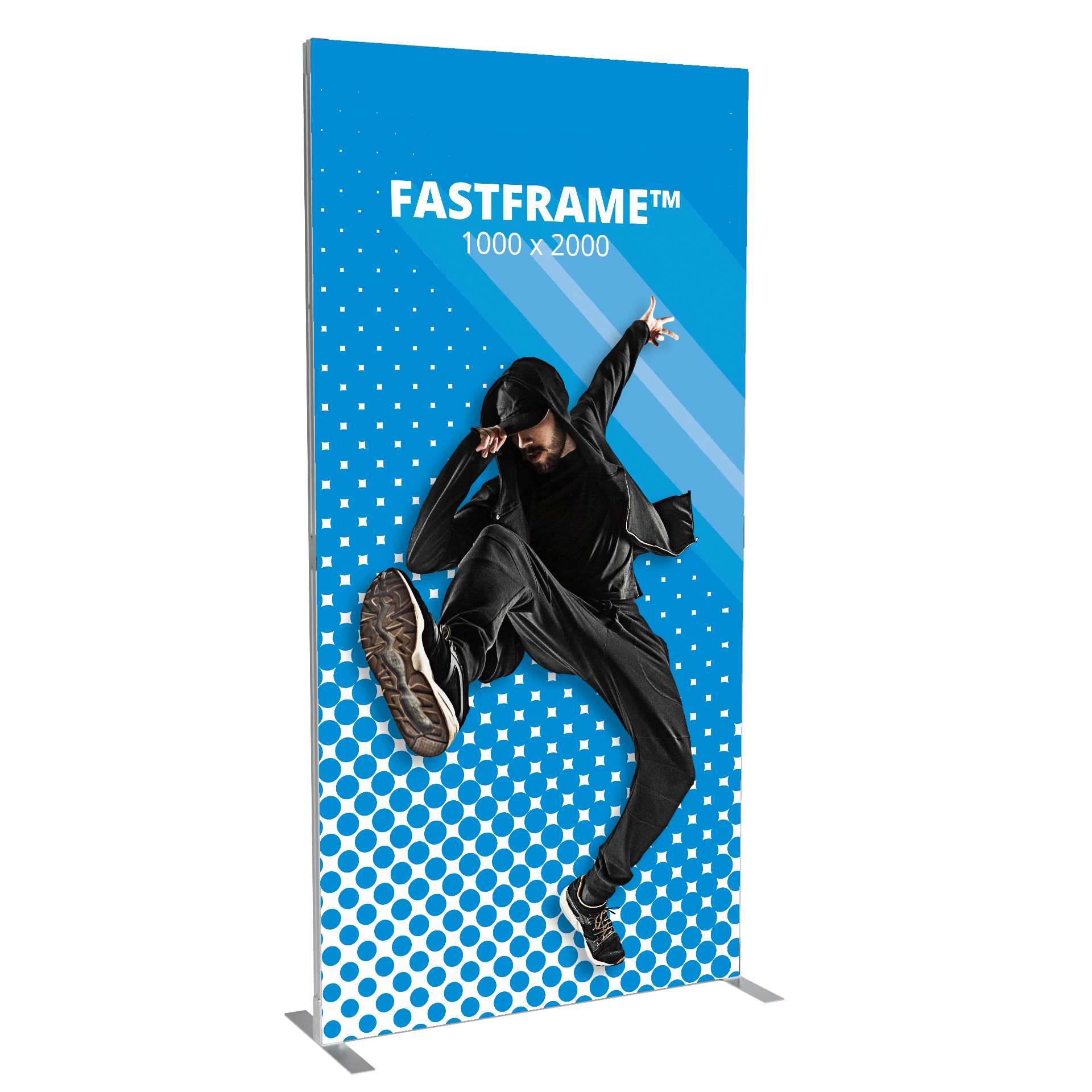

FF-100X200	Fastframe™ 1000 x 2000mm with feet	1
FF-SMF	Small middle foot	3
FF-SHF	Side half feet pair	1
FF-2WC	Two-way connector	5
FF-ACC	Arch connector kit	1
FF-ABK	Arch brace kit	1
FF-SMK	TV bracket	1
FF-DMB-1000	Storage connection kit	1
LED-EXHIB-ARM-BDLK	LED exhibition light kit	3
FF-COUNTER-BLK	Fastframe™ counter black	1

Fastframe™ 24M² Exhibition Stand

Large-scale modular exhibition environment designed for premium open-space stands, immersive visitor engagement and high-impact branded presentation.

Configuration Highlights

• Large-format modular architecture
• Integrated arch feature
• AV-ready presentation area
• Customer interaction counter
• Hidden rear storage
• Seamless linked graphic walls
• Scalable reusable exhibition system

View 24M² Stand

Components Used

SKU	Description	Qty
FF-95X240	Fastframe™ 950 x 2400mm with feet	2
FF-100X240	Fastframe™ 1000 x 2400mm with feet	13
FF-SMF	Small middle foot	2
FF-SHF	Side half feet pair	1
FF-2WC	Two-way connector	3
FF-DMB-1000	Storage connection kit	1
FF-ACC	Arch connector kit	1
FF-ABK	Arch brace kit	1
FF-SMK	TV bracket	1
LED-EXHIB-ARM-BDLK	LED exhibition light kit	3
FF-COUNTER-BLK	Fastframe™ counter black	1

Fastframe™ Options Compared

Fastframe™ Displays for Exhibitions, Retail and Branded Spaces

Fastframe™ is a practical choice when a project needs a professional SEG display that can be built quickly, transported easily and reused across different campaigns. It works particularly well for trade customers managing event schedules, retail rollouts, shell scheme upgrades or repeat client activity.

Fastframe™ is suitable for:

• Exhibition stands, trade shows and conference backdrops
• Media walls, step-and-repeat walls and photo opportunities
• Retail promotions, product launches and in-store campaigns
• Shell scheme upgrades and open-space branded backwalls
• Corporate events, roadshows, reception areas and showrooms
• Reusable campaign programmes requiring refreshed SEG graphics

How to Choose the Right Fastframe™ Display

Choosing the right Fastframe™ display starts with the customer’s objective, available floor space and how the system may need to grow over time. A single frame is a strong option for simple backdrops, campaign messaging or retail displays. Linked frames create more impact for media walls, exhibition backwalls and wider branded environments.

Unlike a single-use display, Fastframe™ can be re-dressed with new graphics and reconfigured with other units for different events, spaces and campaigns. The exhibition layouts shown online should be treated as inspiration for what can be built, rather than fixed packages.

It is also worth considering whether the display needs to be single or double-sided, whether digital screens or shelves are required, and how much transport and storage space is available. Accessories such as feet, connectors, screen mounts, shelf kits and counters can help adapt Fastframe™ to the client brief.

Trade Fastframe™ Supply for UK Resellers and Exhibition Professionals

For trade customers, the right modular display system needs to be easy to specify, simple to transport, quick to install and reliable across repeat campaigns. Fastframe™ gives printers, resellers, agencies and exhibition professionals a practical SEG display solution that can scale from compact backdrops to large exhibition spaces.

With portable hardware, reusable frames, replaceable graphics and reconfigurable layouts, Fastframe™ helps trade teams deliver professional branded spaces without locking customers into a single display format.

Fastframe™ Modular Display System FAQs

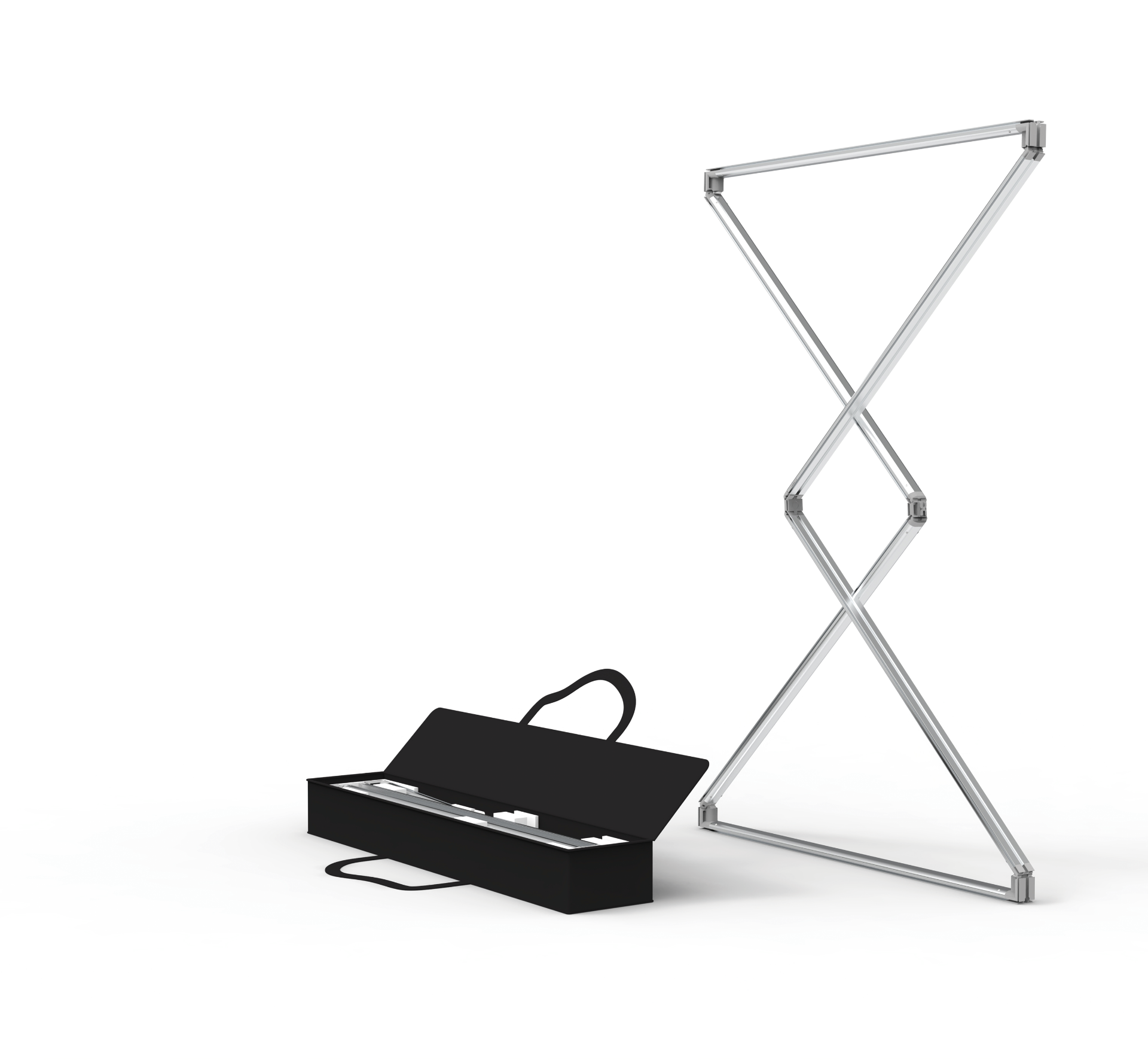

• What is Fastframe™? Fastframe™ is a lightweight, pre-assembled modular display system made from reusable frame units that can be dressed with SEG graphics, linked together and reconfigured for different spaces.
• Is Fastframe™ tool-free? Yes. Fastframe™ is designed for fast, tool-free setup, helping reduce installation time and manpower on site.
• What graphics does Fastframe™ use? Fastframe™ uses SEG fabric graphics for a clean, edge-to-edge display finish. Graphics can be refreshed for new campaigns and events.
• Can Fastframe™ displays be linked together? Yes. Fastframe™ frames can be linked and reconfigured to create larger displays such as backwalls, media walls and modular exhibition spaces.
• Is Fastframe™ suitable for exhibitions? Yes. Fastframe™ is suitable for exhibitions, trade shows, shell scheme upgrades and event environments where fast setup and strong branding are needed.
• Can Fastframe™ be used double-sided? Fastframe™ can support single or double-sided display configurations depending on the graphics specified.
• Are the Fastframe™ exhibition stands fixed kits? No. The exhibition stand examples shown online are inspiration builds that demonstrate what can be achieved. Fastframe™ is a flexible system that can be reconfigured to suit different spaces and requirements.
• What accessories are available for Fastframe™? Accessories include feet, connectors, screen mount kits, shelf kits and counter options to help customise the display for different spaces.
• Do you supply Fastframe™ to trade customers? Yes. Ultima Displays supplies Fastframe™ to UK trade customers including printers, resellers, agencies, exhibition contractors and display professionals. Not yet a customer? Apply for a trade account to access the full product range and pricing.
